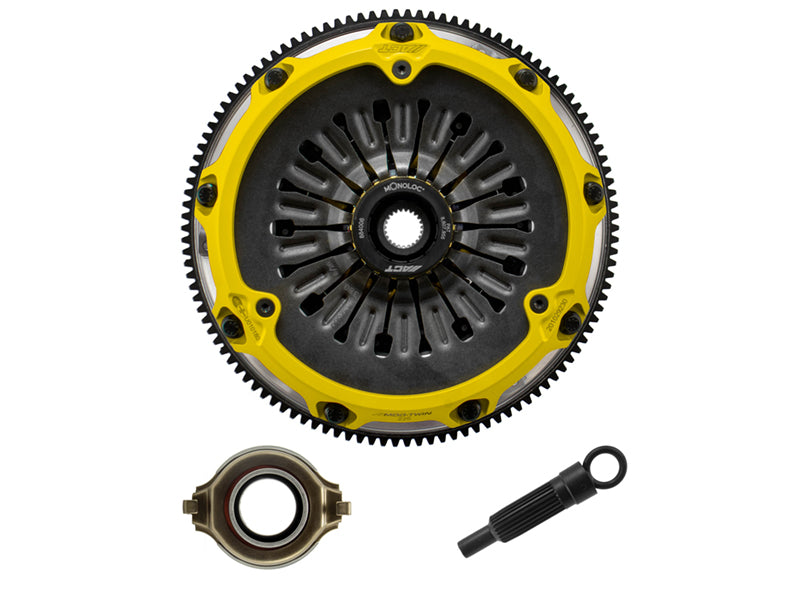

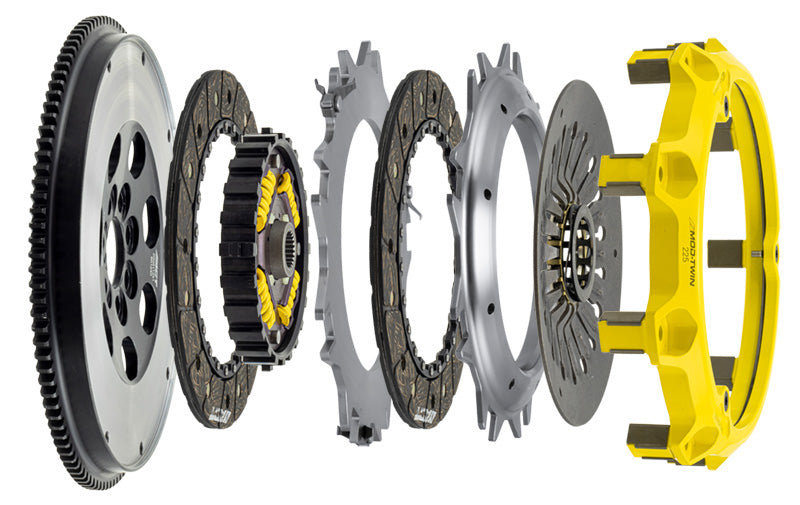

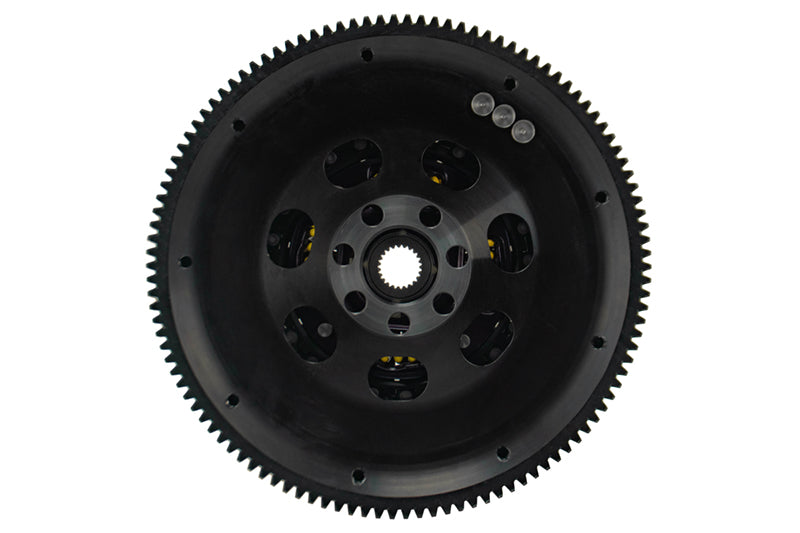

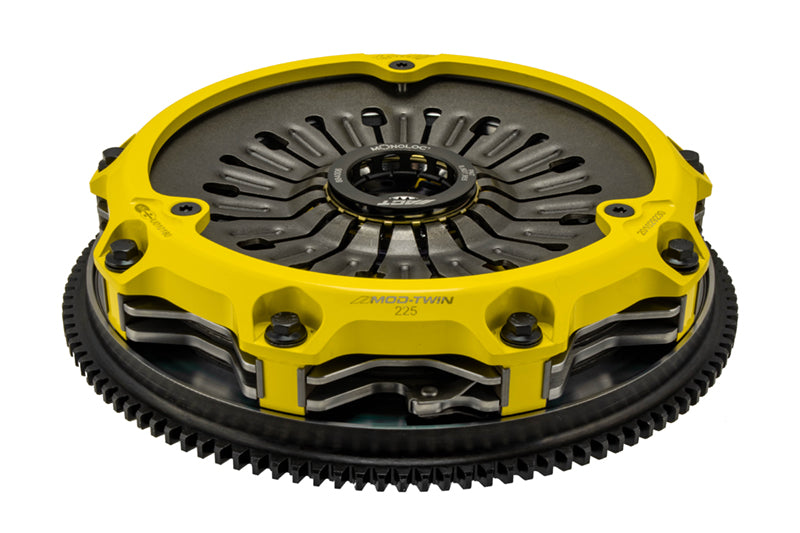

T1S-M05 Mod-Twin 225 HD Sprung Street Kit is designed for high powered AWD street cars. It unites uncompromised pedal feel, durability, engagement quality with very high torque capacity by combining twice the organic friction surfaces with an ultra-durable spring center Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to the Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.

Specifications:

Product Weight (lbs.)	28.1
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Long Label	Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
Prop 65 Yes/No	Yes
SFI	1.2
Title	ACT Mod-Twin 225 HD Sprung Street
Torque Capacity (ft/lbs.)	700
Torque Capacity Over OE	97%
458	Yes
460	Heavy Duty
461	Yes
462	8.8
462	225
463	Organic
464	23
465	1
466	Yes
467	Sprung
3377	Yes
3390	Performance
7453	New
9396	No
10022	No
Description_SHO	Mod-Twin Kit
Description_INV	ACT Mod-Twin 225 HD Sprung Street
Description_ASC	Soft progressive engagement, light pedal effort, smooth shifting with OE to mild transmission gear noise; Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions; Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances; Street or Street/Strip; Applying tactical engineering to the Mod-Twin, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified
Description_KSW	mod twin;modular clutch;twin disc;clutch kit;dual disc;street disc;monoloc;SFI
Description_LAB	ACT Mod-Twin 225 HD Sprung Street Clutch Kit
Description_DES	ACT Mod-Twin 225 Heavy Duty Sprung Street Clutch Kit
Description_EXT	Mod-Twin 225 HD Sprung Street
Description_MKT	T1S-M05 Mod-Twin 225 HD Sprung Street Kit is designed for high powered AWD street cars. It unites uncompromised pedal feel, durability, engagement quality with very high torque capacity by combining twice the organic friction surfaces with an ultra-durable spring center Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to the Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
Description_FAB	"Excellence in Performance", backed by the best one-year warranty in the industry!
Description_DEF	Transmission Clutch Kit

This Part Fits:

Year	Make	Model	Submodel	Notes
2014	Mitsubishi	Lancer	Evolution
2015	Mitsubishi	Lancer	Evolution Final Edition
2008	Mitsubishi	Lancer	Evolution GSR
2009	Mitsubishi	Lancer	Evolution GSR
2010	Mitsubishi	Lancer	Evolution GSR
2011	Mitsubishi	Lancer	Evolution GSR
2012	Mitsubishi	Lancer	Evolution GSR
2013	Mitsubishi	Lancer	Evolution GSR
2014	Mitsubishi	Lancer	Evolution GSR
2015	Mitsubishi	Lancer	Evolution GSR
2009	Mitsubishi	Lancer	Evolution RS
