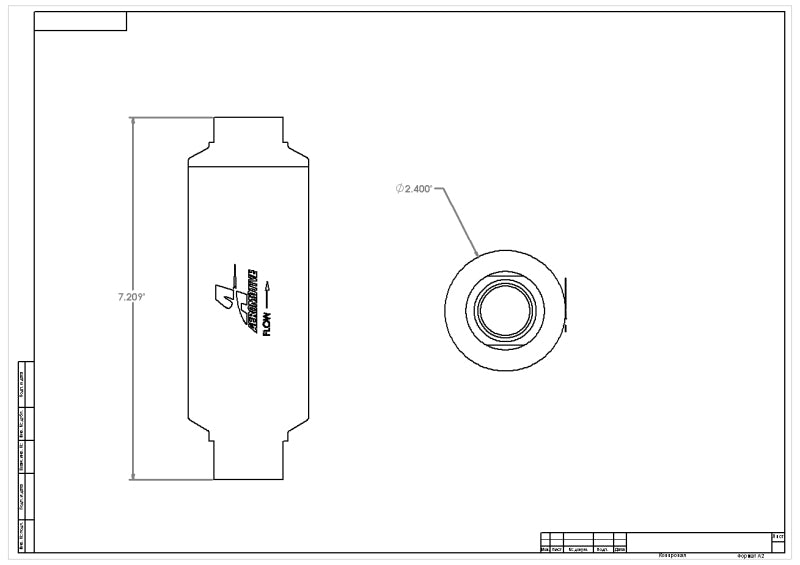

Technical Drawing
Photo - in package
User 9

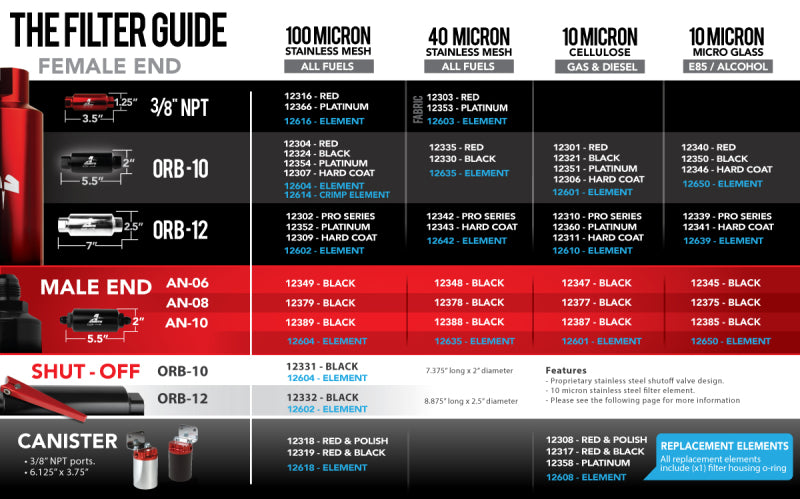

Application Guide
Photo - out of package
Logo Image
Logo Image
Roll over image to zoom in Click on image to zoom
Photo - PrimaryPhoto - PrimaryPhoto - PrimaryPhoto - PrimaryPhoto - PrimaryPhoto - Close UpTechnical DrawingPhoto - in packageUser 9Application GuidePhoto - out of packageLogo ImageLogo Image
Aeromotive

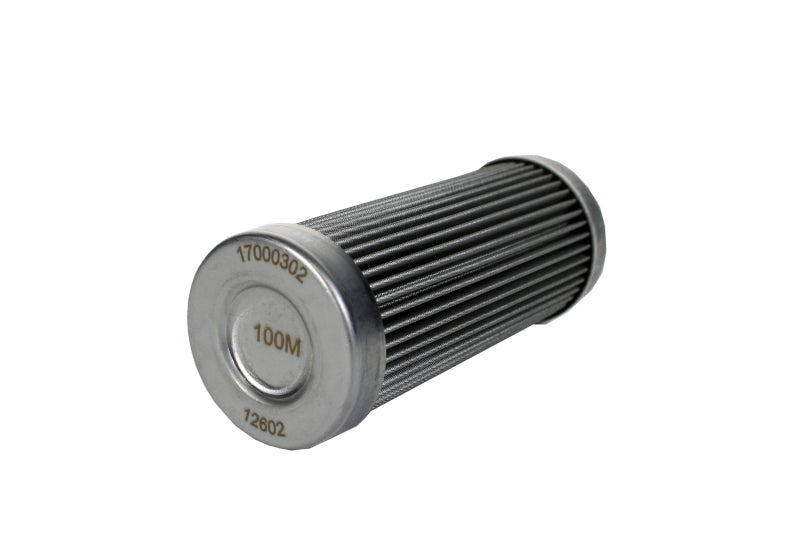

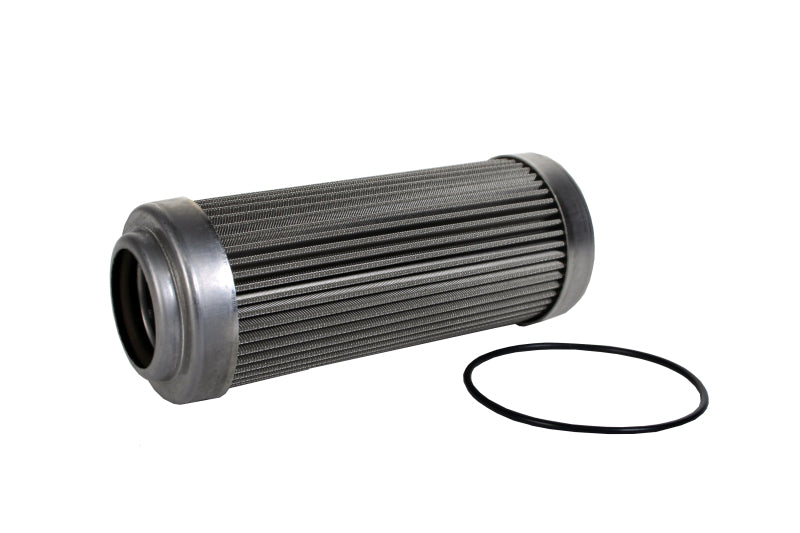

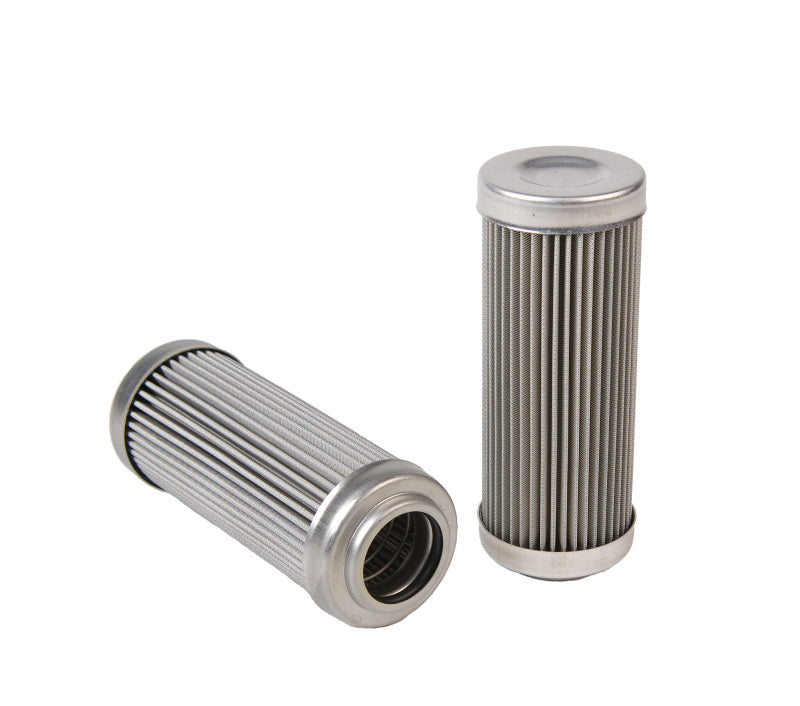

Aeromotive Replacement Pro-Series 100 Micron SS Element (for 12302 Filter Assembly)

SKU: AER12602

Recommended for applications burning pump gas, racing gas, diesel fuel, ...Read more

Price:
$109.76
1090 ENTRIES10X
Add To Cart
Checking fitment…
×

Car Wheel Size Chart

Wheel Diameter (inches) Tire Width (mm) Aspect Ratio Rim Width (inches)
14185655.5
15195606.0
16205556.5
17215507.0
18225457.5
19235408.0
20245358.5

Note: Wheel and tire sizes vary by car make and model. Always consult your vehicle’s manufacturer for exact specifications.

How to Read Tire Size

Example: 225/45R17 means:

  • 225 = Tire width in mm
  • 45 = Aspect ratio (height as % of width)
  • R17 = Rim diameter in inches

Ships FAST in USA

Guaranteed Low Price

GGCRACING Discount

Product Details

Product Description
Part Numbers
Sizing & Fit
Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc. Approved for use in alcohol fuels including ethanol and methanol. Over 90-sq. inches of element surface area supports extreme flow while providing good service life. Cleanable 100-micron Stainless Steel mesh construction. Flow capacity of up to 1,600 GPH (26.6 GPM) with less than 1-PSI pressure drop. Supports up to 14,700 plus Flywheel HP, Forced Induction, on gasoline. Supports up to 10,600 Flywheel HP, Forced Induction on Ethanol. Supports up to 5,000 Flywheel HP, Forced Induction on Methanol. Ideal as a pre-pump filter with gasoline, ethanol and Methanol burning engines with medium to large Aeromotive fuel pumps from the Eliminator pump through the 6 Series Mechanical pump. Popular as a post pump filter with 12 Series (belt and hex driven) mechanical fuel pumps and Aeromotive Spur Gear Pumps up to 32 GPM.
Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc. Approved for use in alcohol fuels including ethanol and methanol. Over 90-sq. inches of element surface area supports extreme flow while providing good service life. Cleanable 100-micron Stainless Steel mesh construction. Flow capacity of up to 1,600 GPH (26.6 GPM) with less than 1-PSI pressure drop. Supports up to 14,700 plus Flywheel HP, Forced Induction, on gasoline. Supports up to 10,600 Flywheel HP, Forced Induction on Ethanol. Supports up to 5,000 Flywheel HP, Forced Induction on Methanol. Ideal as a pre-pump filter with gasoline, ethanol and Methanol burning engines with medium to large Aeromotive fuel pumps from the Eliminator pump through the 6 Series Mechanical pump. Popular as a post pump filter with 12 Series (belt and hex driven) mechanical fuel pumps and Aeromotive Spur Gear Pumps up to 32 GPM.
