Edelbrock

Edelbrock Manifold Victor 350 Olds

SKU: EDE2812
No reviews

Edelbrock part #2812 Victor Oldsmobile intake manifold provides power levels ...Read More

Price:
$676.99
Add To Cart
×

Car Wheel Size Chart

Wheel Diameter (inches) Tire Width (mm) Aspect Ratio Rim Width (inches)
14185655.5
15195606.0
16205556.5
17215507.0
18225457.5
19235408.0
20245358.5

Note: Wheel and tire sizes vary by car make and model. Always consult your vehicle’s manufacturer for exact specifications.

How to Read Tire Size

Example: 225/45R17 means:

  • 225 = Tire width in mm
  • 45 = Aspect ratio (height as % of width)
  • R17 = Rim diameter in inches
Add To Wish List

Ships FAST in USA

Guaranteed Low Price

GGCRACING Summer Discount

Product Details

Product Description
Part Numbers
Sizing & Fit

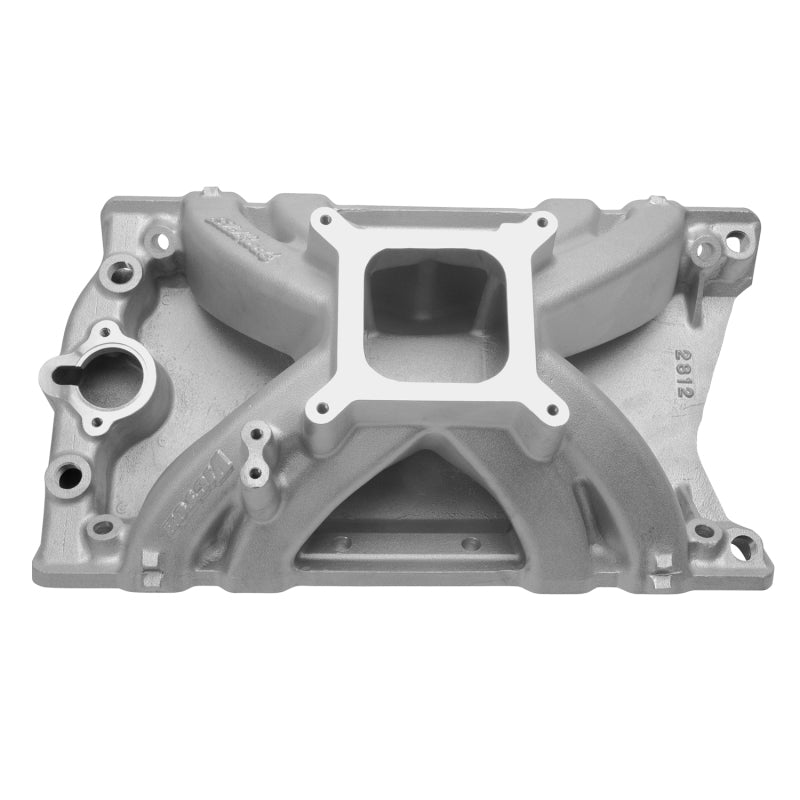

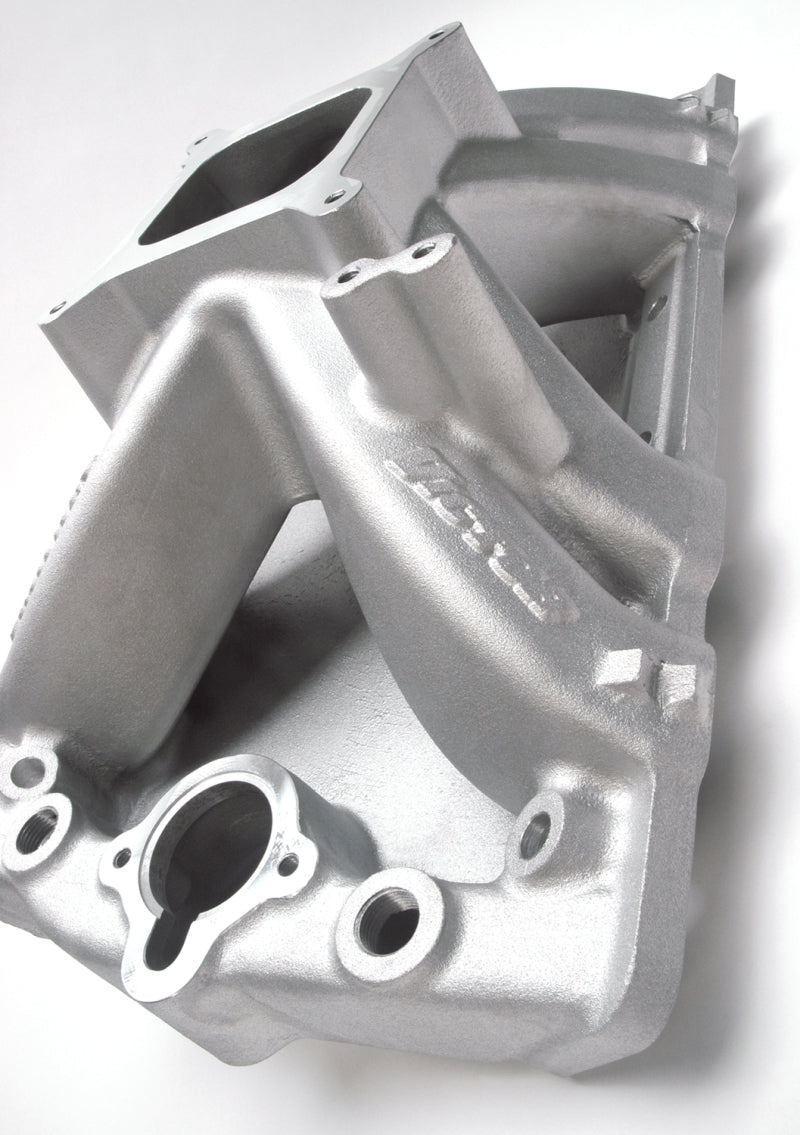

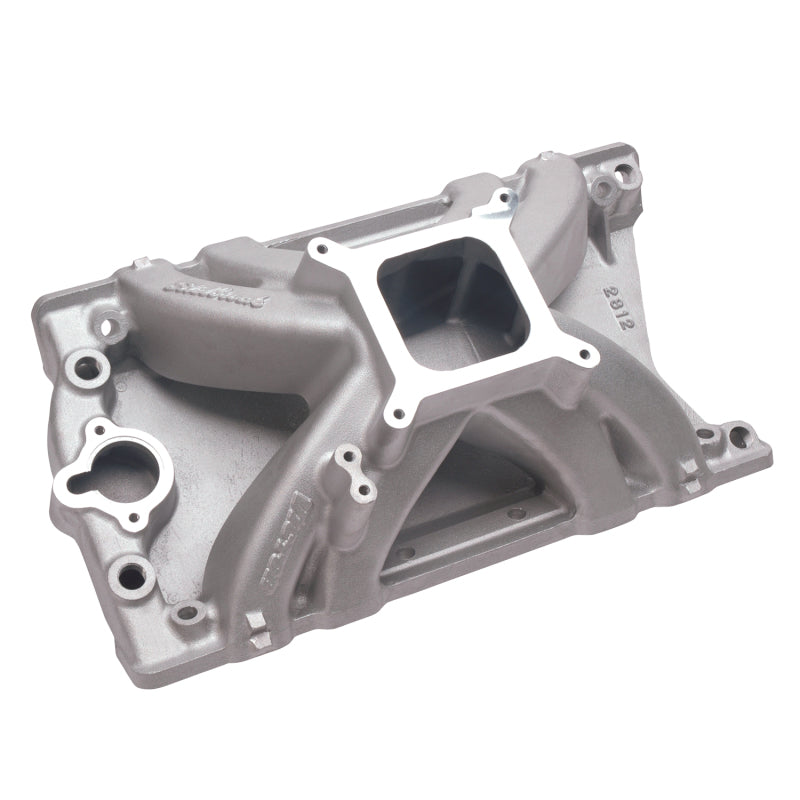

Edelbrock part #2812 Victor Oldsmobile intake manifold provides power levels never before available for competition single-carb 350-403 Olds engines. Featuring a single-plane "Air-Gap" design, it accepts square-bore carb and offers significant horsepower increases over existing intakes in the 4500 to 7500 rpm range. It features a carb mount pad height of 7" and high-flow constant area 3.2-square-inch runners. The runners have been optimized to match the flow characteristics of Edelbrock Performer RPM aluminum cylinder heads #60519 and the exit size, as-cast, is 1.28" by 1.94" with plenty of metal thickness for gasket matching and porting.
Warranty

Product Details

Product Description
Part Numbers
Sizing & Fit
Edelbrock part #2812 Victor Oldsmobile intake manifold provides power levels never before available for competition single-carb 350-403 Olds engines. Featuring a single-plane "Air-Gap" design, it accepts square-bore carb and offers significant horsepower increases over existing intakes in the 4500 to 7500 rpm range. It features a carb mount pad height of 7" and high-flow constant area 3.2-square-inch runners. The runners have been optimized to match the flow characteristics of Edelbrock Performer RPM aluminum cylinder heads #60519 and the exit size, as-cast, is 1.28" by 1.94" with plenty of metal thickness for gasket matching and porting.
Warranty

Product Details

Product Description
Edelbrock part #2812 Victor Oldsmobile intake manifold provides power levels never before available for competition single-carb 350-403 Olds engines. Featuring a single-plane "Air-Gap" design, it accepts square-bore carb and offers significant horsepower increases over existing intakes in the 4500 to 7500 rpm range. It features a carb mount pad height of 7" and high-flow constant area 3.2-square-inch runners. The runners have been optimized to match the flow characteristics of Edelbrock Performer RPM aluminum cylinder heads #60519 and the exit size, as-cast, is 1.28" by 1.94" with plenty of metal thickness for gasket matching and porting.
