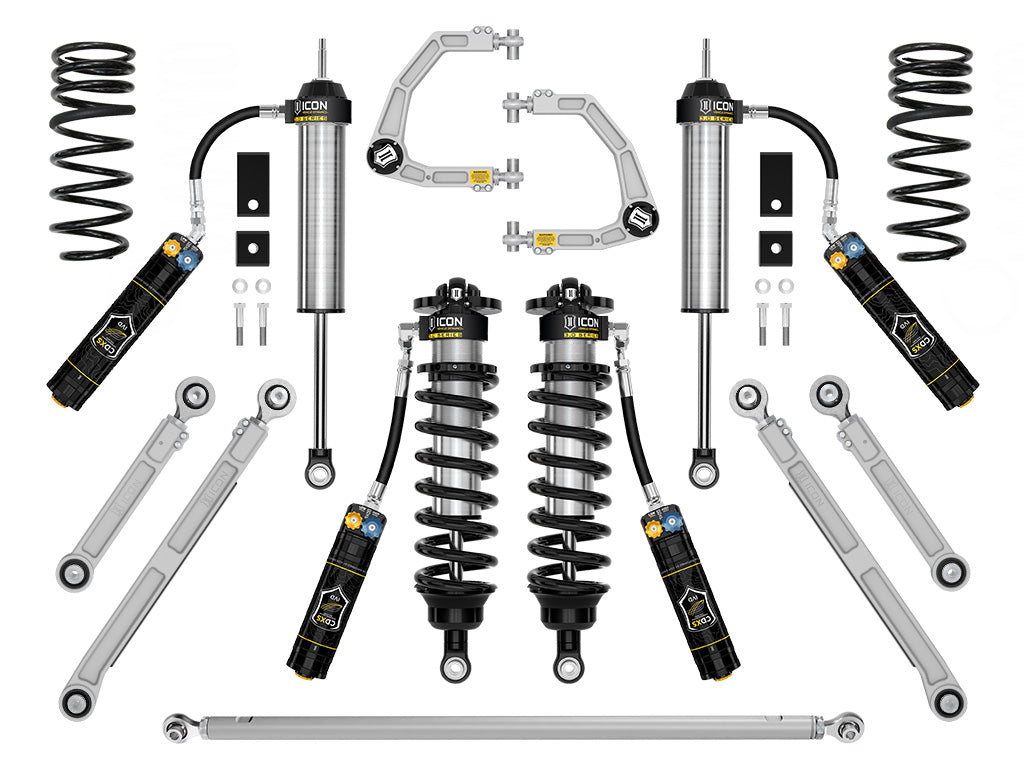

This Stage 3 system features the 2022-2026 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDXS. These adjustable coilovers allow up to 1.25-3.25” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50% more piston surface area in the ride zone of the shock's travel, and 100% in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40% of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. These coilovers also feature ICON's exclusive Compression Damping Dual Speed (CDXS) valves for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40% increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions.
This Part Fits:
| Year |
Make |
Model |
Submodel |
| 2022-2026 |
Toyota |
Tundra |
1794 Edition |
| 2022-2026 |
Toyota |
Tundra |
Limited |
| 2022-2026 |
Toyota |
Tundra |
Platinum |
| 2022-2026 |
Toyota |
Tundra |
SR |
| 2022-2026 |
Toyota |
Tundra |
SR5 |
| 2022-2026 |
Toyota |
Tundra |
TRD Pro |
