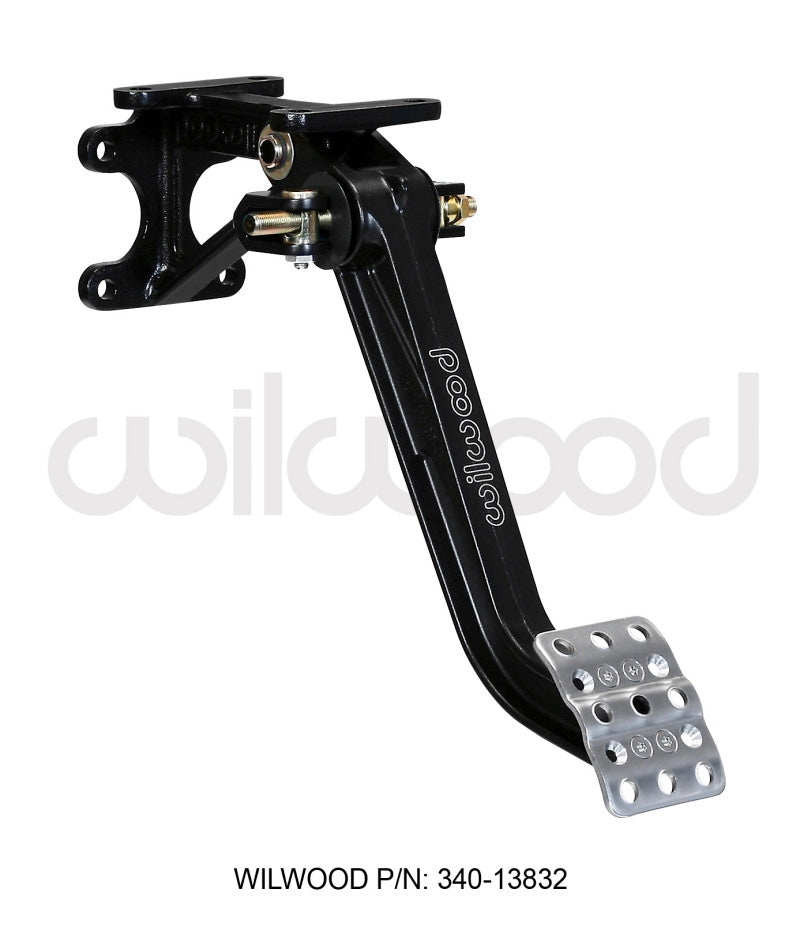

Wilwood Adjustable Brake Pedal - Dual MC - Swing Mount - 7:1

Save 7%
SKU: WIL340-13832

This swinging mount pedal assembly mounts two single outlet brake ...Read more

Price:
$179.45 $193.80
1790 ENTRIES10X

Backordered — usually ships in 15–30 business days

Not in stock right now. We order it from the manufacturer and email you if the date changes.

Pre-order / Backorder
Checking fitment…
×

Car Wheel Size Chart

Wheel Diameter (inches) Tire Width (mm) Aspect Ratio Rim Width (inches)
14185655.5
15195606.0
16205556.5
17215507.0
18225457.5
19235408.0
20245358.5

Note: Wheel and tire sizes vary by car make and model. Always consult your vehicle’s manufacturer for exact specifications.

How to Read Tire Size

Example: 225/45R17 means:

  • 225 = Tire width in mm
  • 45 = Aspect ratio (height as % of width)
  • R17 = Rim diameter in inches

Guaranteed Low Price

GGCRACING Discount

Product Details

Product Description
Part Numbers
Sizing & Fit
This swinging mount pedal assembly mounts two single outlet brake master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size
This swinging mount pedal assembly mounts two single outlet brake master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size
