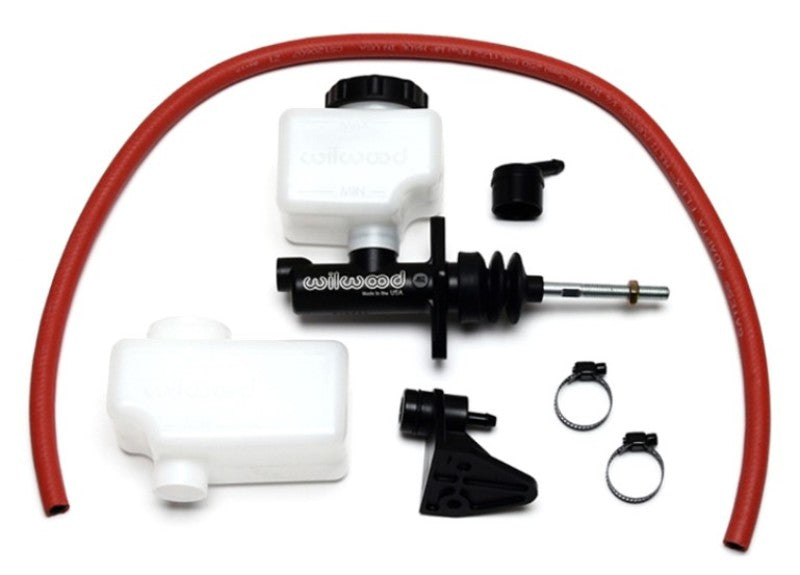

Wilwood Compact Remote Master Cylinder Kit - 15/16" Bore

Introducing the Wilwood Compact Combination Master Cylinder, engineered for vehicles with limited space that still demand robust braking performance. This ultra-short master cylinder boasts a body length of only 3.37 inches, providing an impressive 2.16 inches of extra clearance between the mounting flange and the fluid outlet compared to traditional units. Despite its compact size, it delivers a full 1.12 inches of piston stroke, meeting or exceeding the capacity of most full-size cylinders.

Superior Design and Functionality:

• Space-Saving Design: The ultra-short body is ideal for tight engine bays and custom builds.
• Ample Piston Stroke: Delivers 1.12 inches of stroke for effective braking force.
• Reduced Air Trapping: Features a 1/8" NPT fluid outlet port positioned at the top radius of the cylinder bore to minimize the risk of trapped air.
• Versatile Reservoir Mounting: The enhanced fluid inlet port accommodates the included standard reservoir and also features 11/16-20 internal threads for custom reservoir setups.
• Corrosion Resistance: The black E-Coated aluminum body ensures durability and a long-lasting, attractive finish.

This master cylinder is an excellent choice for hot rods, muscle cars, and any application where space is at a premium but braking power cannot be compromised. The thoughtful design, including the strategically placed outlet port and versatile reservoir options, makes installation and maintenance straightforward. Experience reliable and powerful braking with this high-quality Wilwood component.

Upgrade your braking system with the Wilwood Compact Remote Master Cylinder, available now at GGCRACING.
