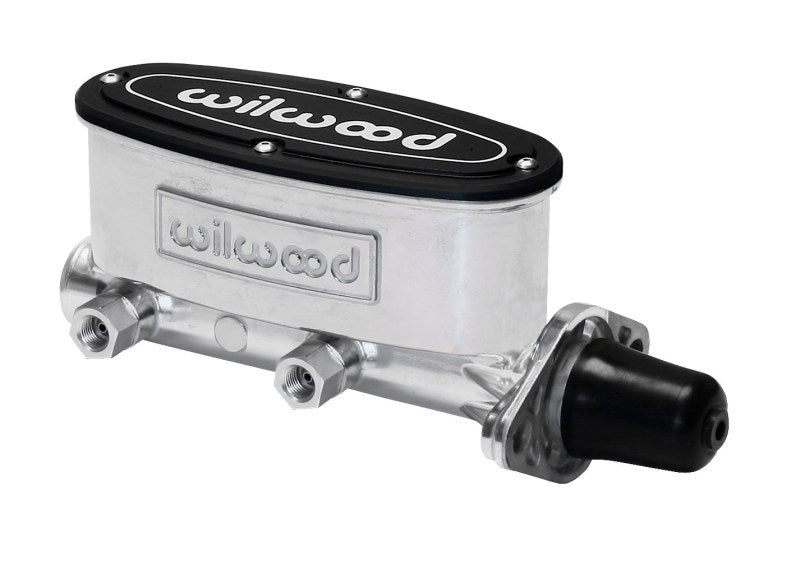

Wilwood High Volume Tandem Master Cylinder - 1 1/8" Bore, Ball Burnished

Enhance your vehicle's braking system with the Wilwood High Volume Tandem Master Cylinder, featuring a 1-1/8 inch bore and a classic ball-burnished finish. This master cylinder is primarily designed for power brake applications, including vacuum or hydraulic assist systems, delivering reliable and consistent performance. The ball-burnished finish offers a timeless aesthetic appeal.

Key Features:

• Bore Size: 1-1/8" - Optimized for power brake systems.
• Finish: Classic Ball Burnished for a traditional look.
• Compatibility: Designed to fit mount flanges from 3.22" to 3.40", compatible with most domestic cars and trucks from the mid-1960s to present.
• Dual Outlet Ports: Equipped with fluid outlet ports on both sides for flexible plumbing configurations.
• Stroke: Standard stroke set at 1.10" with a 2:1 volume ratio between primary and secondary chambers.
• Construction: Precision-machined from high-pressure die-cast aluminum for durability and light weight.

This 1-1/8" bore master cylinder is an excellent choice for vehicles utilizing power assist systems, providing the necessary fluid displacement for effective braking. The ball-burnished finish offers a distinct look that complements classic and custom builds. Its broad compatibility with domestic vehicle mount flanges simplifies the installation process.

Ensure optimal stopping power and a custom look with this high-quality master cylinder from Wilwood, available at GGCRACING.
