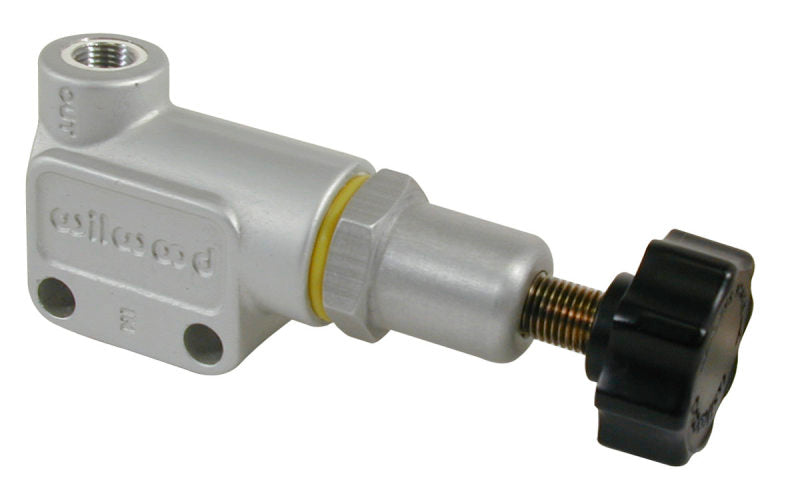

Wilwood Knob Adjust Proportioning Valve - 3/8-24 Inverted Flare

Achieve precise control over your vehicle's braking balance with the Wilwood Knob Adjust Proportioning Valve. This advanced valve allows you to fine-tune the pressure distribution between your front and rear brakes, ensuring optimal performance and stability during aggressive driving or varied load conditions.

Precision Braking Control:

• Fine-Tuning Capability: The knob adjuster features fine-thread tuning, enabling highly precise adjustments to rear brake line pressure, ranging from 100 to 1000 PSI.
• Maximum Pressure Reduction: Offers the highest available pressure decrease percentage (up to 57%) for the rear circuit, allowing for significant bias adjustment.
• Forged Billet Design: Constructed from a compact, forged billet aluminum for exceptional strength and durability while maintaining a lightweight profile (only 5.2 ounces).
• Direct Fitment: Features 3/8-24 inverted flare (IF) inlet and outlet ports, designed for direct connection with 3/16" tubing without the need for adapters.
• Mounting Options: Includes two 0.25" side mounting holes spaced 1.00" apart for versatile installation.

This Wilwood proportioning valve is essential for any performance-oriented build or custom brake system where precise bias adjustment is critical. It helps prevent rear-wheel lockup and optimizes stopping power. Enhance your braking confidence and performance with this high-quality component from GGCRACING.
