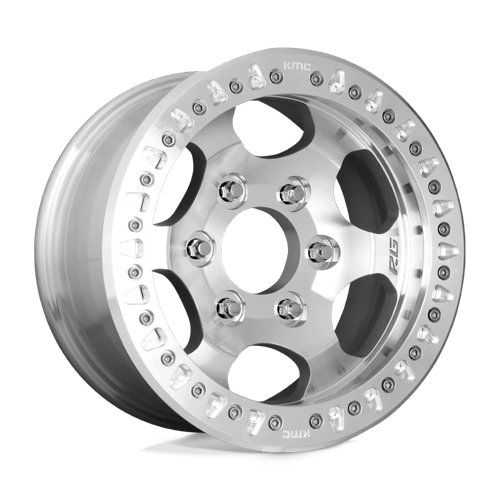

XD XD231 RG Race Beadlock 17x8.5 Wheel - 6x6.5 Bolt Pattern, Machined Finish, 00mm Offset

SKU: DLHW_XD23178591500R
No reviews

About XD XD Series by KMC is the off-road wheel ...Read More

Price:
Sale price$401.00
Sold Out
×

Car Wheel Size Chart

Wheel Diameter (inches) Tire Width (mm) Aspect Ratio Rim Width (inches)
14185655.5
15195606.0
16205556.5
17215507.0
18225457.5
19235408.0
20245358.5

Note: Wheel and tire sizes vary by car make and model. Always consult your vehicle’s manufacturer for exact specifications.

How to Read Tire Size

Example: 225/45R17 means:

  • 225 = Tire width in mm
  • 45 = Aspect ratio (height as % of width)
  • R17 = Rim diameter in inches

Product Details

Product Description
Part Numbers
Sizing & Fit

About XD

XD Series by KMC is the off-road wheel for hardcore truck and Jeep enthusiasts. From the iconic XD820 Grenade to the latest forged designs, every XD wheel is built to handle full-throttle desert running, rock crawls, and overland builds. Hub-centric machining ensures perfect OE-spec fitment.

Watch in action

Conquer Any Terrain with the XD XD231 RG Race Beadlock 17x8.5 Machined Wheel

For the serious off-road enthusiast, the XD XD231 RG Race Beadlock 17x8.5 wheel is the ultimate weapon against challenging landscapes. Engineered for extreme performance and unyielding grip, this wheel is designed to dominate the most demanding trails. Its true beadlock technology ensures maximum tire retention at ultra-low pressures, providing unparalleled traction and control when you need it most.

True Beadlock Performance and Rugged Aesthetics

The XD231 RG Race Beadlock features a genuine beadlock design, critical for preventing tire bead separation during aggressive off-roading. This robust functionality is paired with a striking machined finish that highlights the wheel's intricate details and rugged construction. Crafted from high-strength cast aluminum, this wheel is built to withstand brutal impacts and harsh environments, ensuring reliability when you're far from paved roads.

Engineered for Extreme Off-Road Capability

With an impressive load rating of 3640 lbs (1651 kg), the XD231 is ready for heavy-duty applications and extreme vehicle setups. The 00mm offset and 4.75-inch backspacing provide a balanced stance that improves stability and articulation on uneven terrain. Designed specifically for 6-lug vehicles, it features a robust 6x6.5 (6x165.1mm) bolt pattern, making it a perfect fit for a wide range of popular off-road trucks and SUVs. While built for competition, it's important to note this is a true beadlock wheel and is not DOT approved for street use.

Key Specifications:

  • Model: XD231 RG Race Beadlock
  • Diameter: 17 inches
  • Width: 8.5 inches
  • Bolt Pattern: 6x6.5 (6x165.1mm)
  • Offset: 00mm
  • Backspacing: 4.75 inches
  • Center Bore: 108.0mm
  • Load Rating: 3640 lbs (1651 kg)
  • Construction: Cast Aluminum
  • Finish: Machined
  • Bead Lock: Yes (Not DOT Approved)
  • Certification: SAEJ2530
  • TPMS Compatible: Yes
  • Rivet Part Number: PSD47 (Quantity: 24)
  • Structural Warranty: Lifetime
  • Finish Warranty: One Year

Unleash Your Vehicle's Full Off-Road Potential

The XD231 RG Race Beadlock is the ultimate choice for adventurers who demand uncompromising performance and durability. Its specialized design ensures maximum traction and peace of mind on the toughest trails, allowing you to push your vehicle's limits with confidence. Backed by a lifetime structural warranty, this wheel is a testament to XD's commitment to extreme off-road excellence. Find your ultimate off-road advantage at GGCRACING.
