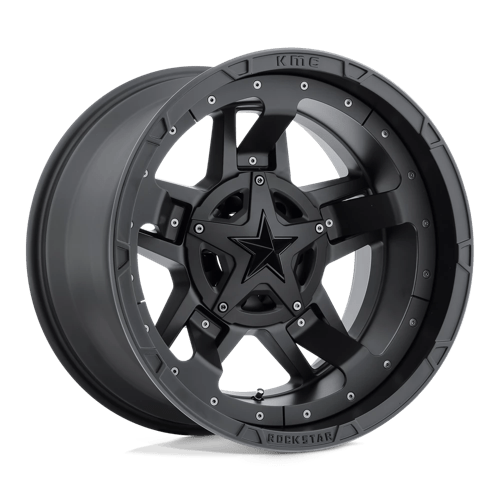

XD827 17X8 6X120/5.5 M-BLK 20MM
Specifications:
| Size Description | 17X8 |
| Diameter | 17.0 |
| Width | 8.0 |
| Lug Count | 6 |
| Bolt Pattern Metric | 6X120/6X139.7 |
| Bolt Pattern Standard | 6X120/5.5 |
| Offset | 20 |
| Backspacing | 5.29 |
| Center Bore | 78.1 |
| Load Rating Metric | 1133.0 |
| Load Rating Standard | 2500.0 |
| Division | 10 |
| Barrel Config | S |
| Cap Part Number | 827CAPMB-GB-1 |
| Other Accessories | MID SPOKE ACCENT = 827MS780* |
| TPMS Compatible | 1 |
| Wheel Weight | 31.25 |
| Brand Description | XD |
| Display Style Number | 827 |
| Style | XD827 ROCKSTAR III |
| Source Country | CN |
| Box Label Description | M-BLK |
| Finish Warranty | ONE YEAR |
| Structural Warranty | LIFETIME |
| Bolt Pattern MM2 | 139.7 |
| Smallest Bolt Pattern | 108 |
| Largest Bolt Pattern | 155 |
| Min Lug Count | 3 |
| Max Lug Count | 7 |
| Open End Cap | NONE |
| Rivet Part Number | OPT BEAD=827BR17* |
| Patent | D794534 / D801903 / D811980 / D812540 / D786167 / D811981 / D786168 / D812541 / D792831 / D794533 / D792317 |
| Lip Depth | 1.47 |
| Construction Type | Cast Aluminum |
| Material | CA |
| Fancy Finish Description | MATTE BLACK |
| Bolt Pattern MM1 | 120 |
| Prop65 Chemical 1 | Chromium (hexavalent compounds) |
| Prop65 Chemical 2 | Nickel (Metallic) |
| Prop65 Chemical 3 | Lead |
