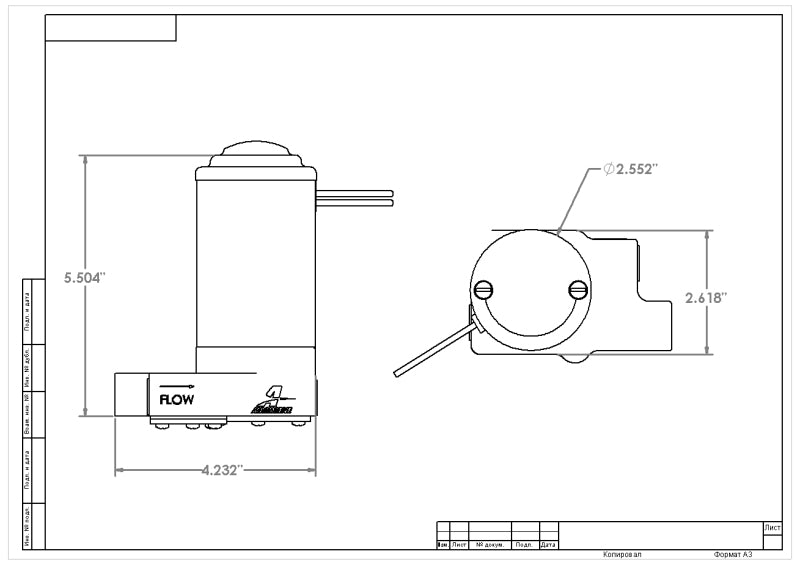

Technical Drawing
Photo - Unmounted
Photo - in package
User 9
User 4

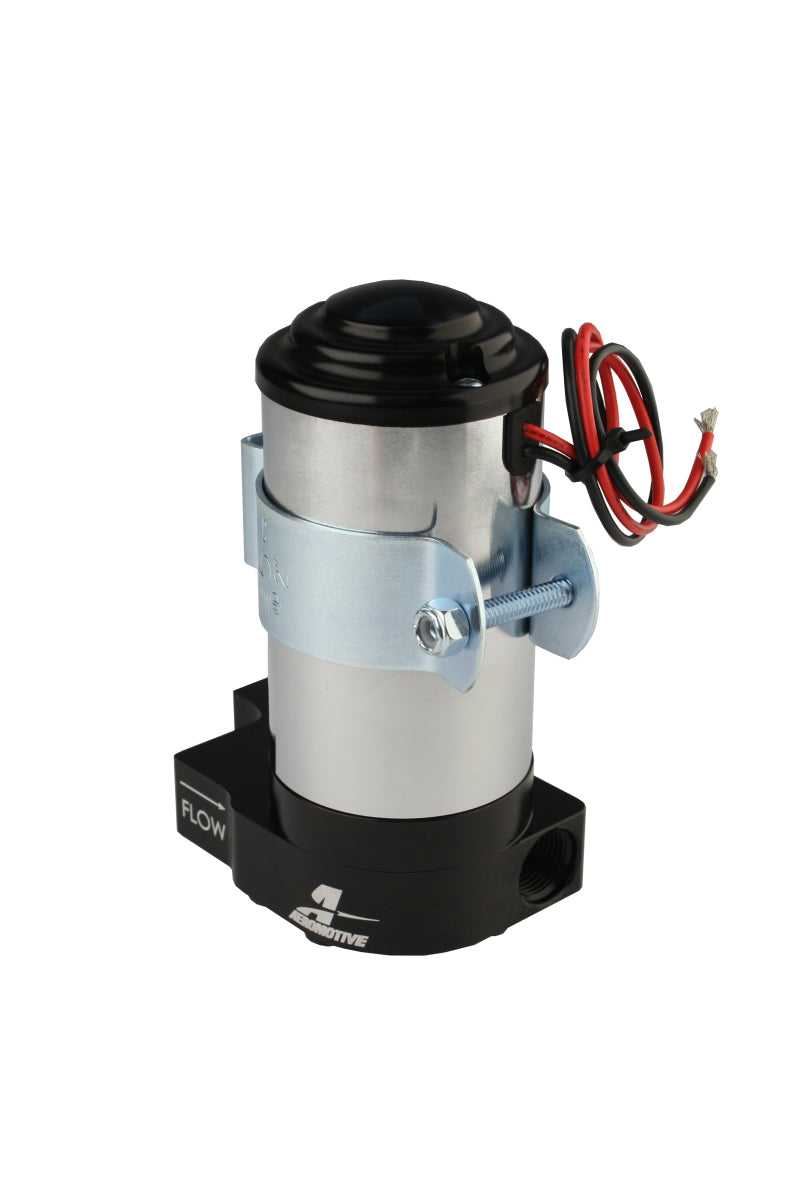

Photo - out of package
Product Specifications Sheet
User 6
Logo Image
Logo Image
Roll over image to zoom in Click on image to zoom
Photo - PrimaryPhoto - PrimaryPhoto - PrimaryPhoto - PrimaryPhoto - PrimaryPhoto - PrimaryPhoto - Close UpTechnical DrawingPhoto - UnmountedPhoto - in packageUser 9User 4Photo - out of packageProduct Specifications SheetUser 6Logo ImageLogo Image
Aeromotive

Aeromotive Street Pump 7-PSI - AN-08 Ports

Save 5%
SKU: AER11219
No reviews

Ideal for carbureted power plants not using a separate fuel ...Read More

Price:
$337.99 $357.55
Add To Cart
×

Car Wheel Size Chart

Wheel Diameter (inches) Tire Width (mm) Aspect Ratio Rim Width (inches)
14185655.5
15195606.0
16205556.5
17215507.0
18225457.5
19235408.0
20245358.5

Note: Wheel and tire sizes vary by car make and model. Always consult your vehicle’s manufacturer for exact specifications.

How to Read Tire Size

Example: 225/45R17 means:

  • 225 = Tire width in mm
  • 45 = Aspect ratio (height as % of width)
  • R17 = Rim diameter in inches
Add To Wish List

Ships FAST in USA

Guaranteed Low Price

GGCRACING Summer Discount

Product Details

Product Description
Part Numbers
Sizing & Fit
Ideal for carbureted power plants not using a separate fuel pressure regulator, the high output (H/O) Fuel Pump is designed for engines making 200-600 HP and is ideal for street cars and mild race cars alike. Similar to our SS Fuel Pump design, but internally regulated to 7 PSI. Available with optional 3/8' NPT (or) ORB -8 inlet and outlet ports. Durable billet construction. Fuel flow exceeds 90 GPH at 5 PSI and draws less than 5 amps. Internally regulated to 7 PSI, eliminating the need for a separate regulator on most carburetors. Rated for continuous duty, the pumping mechanism features a composite rotor, stainless steel vanes and heat treated steel top and bottom plates for durability.
Installation Instructions
Installation Instructions

Product Details

Product Description
Part Numbers
Sizing & Fit
Ideal for carbureted power plants not using a separate fuel pressure regulator, the high output (H/O) Fuel Pump is designed for engines making 200-600 HP and is ideal for street cars and mild race cars alike. Similar to our SS Fuel Pump design, but internally regulated to 7 PSI. Available with optional 3/8' NPT (or) ORB -8 inlet and outlet ports. Durable billet construction. Fuel flow exceeds 90 GPH at 5 PSI and draws less than 5 amps. Internally regulated to 7 PSI, eliminating the need for a separate regulator on most carburetors. Rated for continuous duty, the pumping mechanism features a composite rotor, stainless steel vanes and heat treated steel top and bottom plates for durability.
Installation Instructions
Installation Instructions

Product Details

Product Description
Ideal for carbureted power plants not using a separate fuel pressure regulator, the high output (H/O) Fuel Pump is designed for engines making 200-600 HP and is ideal for street cars and mild race cars alike. Similar to our SS Fuel Pump design, but internally regulated to 7 PSI. Available with optional 3/8' NPT (or) ORB -8 inlet and outlet ports. Durable billet construction. Fuel flow exceeds 90 GPH at 5 PSI and draws less than 5 amps. Internally regulated to 7 PSI, eliminating the need for a separate regulator on most carburetors. Rated for continuous duty, the pumping mechanism features a composite rotor, stainless steel vanes and heat treated steel top and bottom plates for durability.
Installation Instructions
Installation Instructions
