APR 10-16 Audi S4/S5/14-17 Audi Q5/SQ5 (B8) 3.0T Open Carbon Fiber Intake System (CI100037)

Save 15%
SKU: APRCI100037

APR 10-16 Audi S4/S5/14-17 Audi Q5/SQ5 (B8) 3.0T Open Carbon ...Read more

Price:
Sale price$554.42 Regular price$652.95
5540 ENTRIES10X
Add To Cart
Checking fitment…
×

Car Wheel Size Chart

Wheel Diameter (inches) Tire Width (mm) Aspect Ratio Rim Width (inches)
14185655.5
15195606.0
16205556.5
17215507.0
18225457.5
19235408.0
20245358.5

Note: Wheel and tire sizes vary by car make and model. Always consult your vehicle’s manufacturer for exact specifications.

How to Read Tire Size

Example: 225/45R17 means:

  • 225 = Tire width in mm
  • 45 = Aspect ratio (height as % of width)
  • R17 = Rim diameter in inches

Product Details

Product Description
Part Numbers
Sizing & Fit

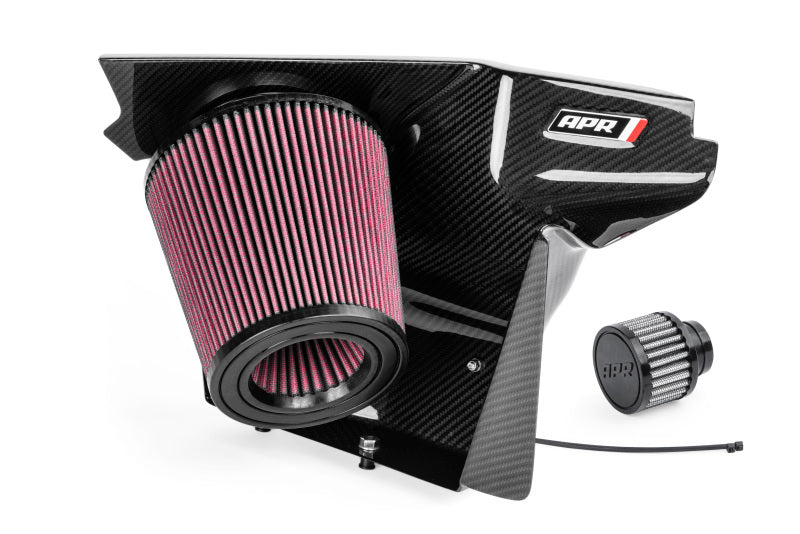

APR 10-16 Audi S4/S5/14-17 Audi Q5/SQ5 (B8) 3.0T Open Carbon Fiber Intake System

APR Open Carbon Fiber Intake - B8 6 and 8-Cylinder

Fits 2013-2017 Audi Q5 - 2010-2016 Audi S4/S5 - 2014-2017 Audi SQ5

The APR Open Carbon Fiber Intake System is the ultimate intake system for the 3.0 TFSI. The factory system is dramatically undersized, creating a power robbing inlet restriction that's ever-so apparent at higher horsepower levels. To address this, we've done away with the airbox completely and created a new drop-in open system that literally installs in minutes. Our beautiful carbon fiber air-dam directs air into our massively oversized 7" filter with frontal inlet, and includes a thick T304 Stainless-Steel heat shield and air buffer-gap on the back of the carbon fiber shell to reject heat from the engine bay. The 4" inlet is compatible with the factory inlet, or the upgraded APR Ultracharger System, and creates an uninterrupted airflow path into the supercharger for maximum results.With flow bench gains as high as 268 CFM at 28" of H2O over the factory intake system, we were able to measure an average of 17 AWHP more than the factory system. The intake looks the part with extremely precise fitment, and delivers a scream from the supercharger like none-other. This is the intake system you've always needed!

  • Brand: APR
  • Part number: CI100037
  • Category: Air Intake Systems
  • Type: Cold Air Intakes

APR 10-16 Audi S4/S5/14-17 Audi Q5/SQ5 (B8) 3.0T Open Carbon Fiber Intake System

APR Open Carbon Fiber Intake - B8 6 and 8-Cylinder

Fits 2013-2017 Audi Q5 - 2010-2016 Audi S4/S5 - 2014-2017 Audi SQ5

The APR Open Carbon Fiber Intake System is the ultimate intake system for the 3.0 TFSI. The factory system is dramatically undersized, creating a power robbing inlet restriction that's ever-so apparent at higher horsepower levels. To address this, we've done away with the airbox completely and created a new drop-in open system that literally installs in minutes. Our beautiful carbon fiber air-dam directs air into our massively oversized 7" filter with frontal inlet, and includes a thick T304 Stainless-Steel heat shield and air buffer-gap on the back of the carbon fiber shell to reject heat from the engine bay. The 4" inlet is compatible with the factory inlet, or the upgraded APR Ultracharger System, and creates an uninterrupted airflow path into the supercharger for maximum results.With flow bench gains as high as 268 CFM at 28" of H2O over the factory intake system, we were able to measure an average of 17 AWHP more than the factory system. The intake looks the part with extremely precise fitment, and delivers a scream from the supercharger like none-other. This is the intake system you've always needed!

  • Brand: APR
  • Part number: CI100037
  • Category: Air Intake Systems
  • Type: Cold Air Intakes
