DEI 06-15 Mazda Miata NC Transmission Tunnel Heat Shield Kit

SKU: DEI10950
No reviews

The Miata Transmission Tunnel Heat Shield Kit solves the problem ...Read More

Price:
Sale price$147.99
Add To Cart
×

Car Wheel Size Chart

Wheel Diameter (inches) Tire Width (mm) Aspect Ratio Rim Width (inches)
14185655.5
15195606.0
16205556.5
17215507.0
18225457.5
19235408.0
20245358.5

Note: Wheel and tire sizes vary by car make and model. Always consult your vehicle’s manufacturer for exact specifications.

How to Read Tire Size

Example: 225/45R17 means:

  • 225 = Tire width in mm
  • 45 = Aspect ratio (height as % of width)
  • R17 = Rim diameter in inches

Product Details

Product Description
Part Numbers
Sizing & Fit

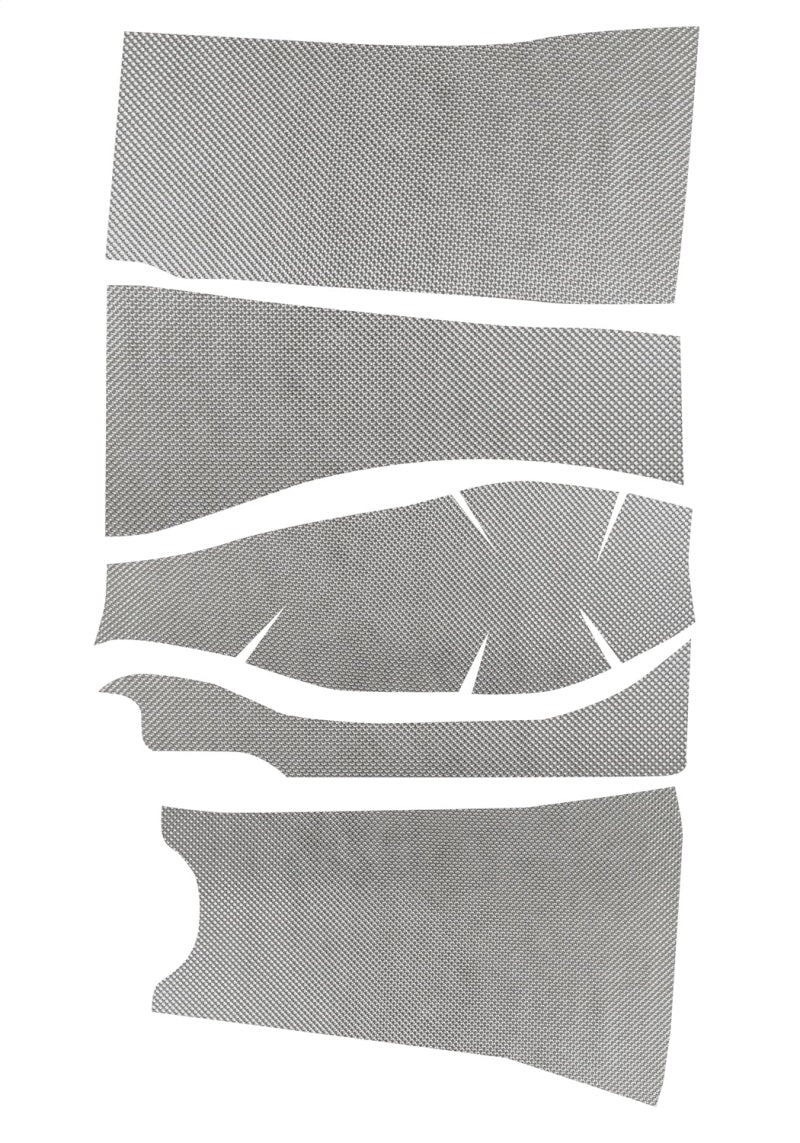

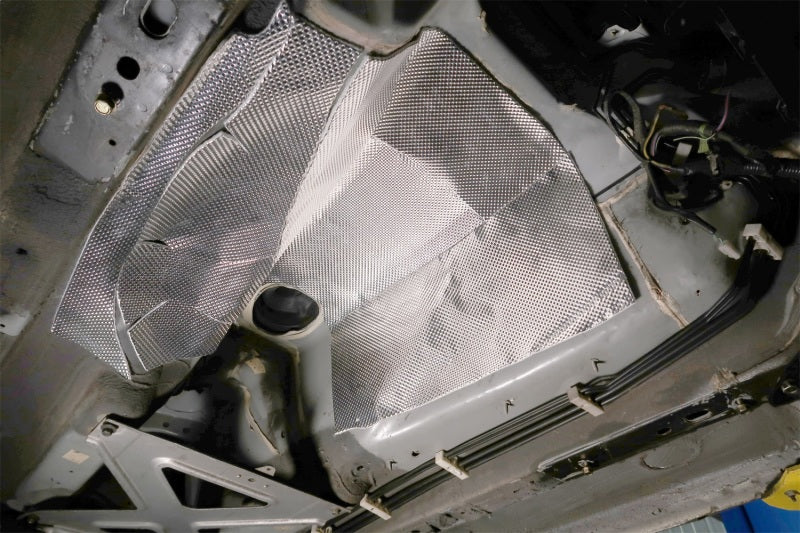

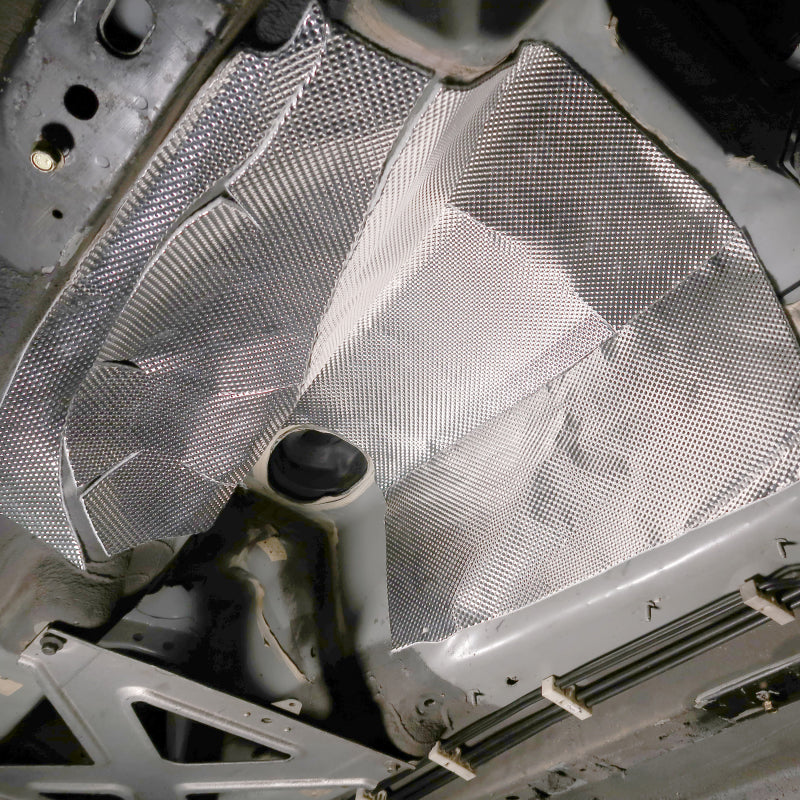

The Miata Transmission Tunnel Heat Shield Kit solves the problem of hot interiors in NC Miata's. Direct replacement for the factory heat shield that can get damaged or even missing. The transmission must be removed to install. The kit consists of a high-heat resistant material (Floor and Tunnel) only 3/16 in. thick for minimal clearance and rated to handle 1750°F of direct heat. The material is CNC cut into five individual pieces that are applied to and fit together above of the transmission to reflect heat from entering through the floor. Each piece is backed with an aggressive adhesive for a simple peel, position and stick application. Also included are two packets of adhesion promoter, one roll of 1-1/2 in. w x 15ft heat reflective sealing tape to cover seams and detailed installation instructions. Reduce interior heat for an improved & cooler driving experience Light weight precision die cut pieces for a perfect fit Withstands direct heat up to 1750°F (954°C) Super strong, self-adhesive backing Peel, position & apply for an easy and simply installation Replaces missing or damaged factory heat shield. KIT INCLUDES: 5 Custom cut pieces 1 Roll heat reflective tape Instructions

Product Details

Product Description
Part Numbers
Sizing & Fit
The Miata Transmission Tunnel Heat Shield Kit solves the problem of hot interiors in NC Miata's. Direct replacement for the factory heat shield that can get damaged or even missing. The transmission must be removed to install. The kit consists of a high-heat resistant material (Floor and Tunnel) only 3/16 in. thick for minimal clearance and rated to handle 1750°F of direct heat. The material is CNC cut into five individual pieces that are applied to and fit together above of the transmission to reflect heat from entering through the floor. Each piece is backed with an aggressive adhesive for a simple peel, position and stick application. Also included are two packets of adhesion promoter, one roll of 1-1/2 in. w x 15ft heat reflective sealing tape to cover seams and detailed installation instructions. Reduce interior heat for an improved & cooler driving experience Light weight precision die cut pieces for a perfect fit Withstands direct heat up to 1750°F (954°C) Super strong, self-adhesive backing Peel, position & apply for an easy and simply installation Replaces missing or damaged factory heat shield. KIT INCLUDES: 5 Custom cut pieces 1 Roll heat reflective tape Instructions

Product Details

Product Description
The Miata Transmission Tunnel Heat Shield Kit solves the problem of hot interiors in NC Miata's. Direct replacement for the factory heat shield that can get damaged or even missing. The transmission must be removed to install. The kit consists of a high-heat resistant material (Floor and Tunnel) only 3/16 in. thick for minimal clearance and rated to handle 1750°F of direct heat. The material is CNC cut into five individual pieces that are applied to and fit together above of the transmission to reflect heat from entering through the floor. Each piece is backed with an aggressive adhesive for a simple peel, position and stick application. Also included are two packets of adhesion promoter, one roll of 1-1/2 in. w x 15ft heat reflective sealing tape to cover seams and detailed installation instructions. Reduce interior heat for an improved & cooler driving experience Light weight precision die cut pieces for a perfect fit Withstands direct heat up to 1750°F (954°C) Super strong, self-adhesive backing Peel, position & apply for an easy and simply installation Replaces missing or damaged factory heat shield. KIT INCLUDES: 5 Custom cut pieces 1 Roll heat reflective tape Instructions
