ICON 21-23 Ford Bronco Rear Heavy Rate Coil Spring Kit

Name: ICON 21-23 Ford Bronco Rear Heavy Rate Coil Spring Kit
Brand: ICON
SKU: ICO48200
Price: 309.99 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

ICON

ICON 21-23 Ford Bronco Rear Heavy Rate Coil Spring Kit

Save 8%

SKU: ICO48200

No reviews

The ICON Vehicle Dynamics Heavy Rate Rear Coil Spring Kit ...Read More

Price:

$309.99 $337.85

Quantity:

Add To Cart

Car Wheel Size Chart

Wheel Diameter (inches)	Tire Width (mm)	Aspect Ratio	Rim Width (inches)
14	185	65	5.5
15	195	60	6.0
16	205	55	6.5
17	215	50	7.0
18	225	45	7.5
19	235	40	8.0
20	245	35	8.5

Note: Wheel and tire sizes vary by car make and model. Always consult your vehicle’s manufacturer for exact specifications.

How to Read Tire Size

Example: 225/45R17 means:

225 = Tire width in mm
45 = Aspect ratio (height as % of width)
R17 = Rim diameter in inches

Ships FAST in USA

Guaranteed Low Price

GGCRACING Summer Discount

Product Details

Product Description

Part Numbers

Sizing & Fit

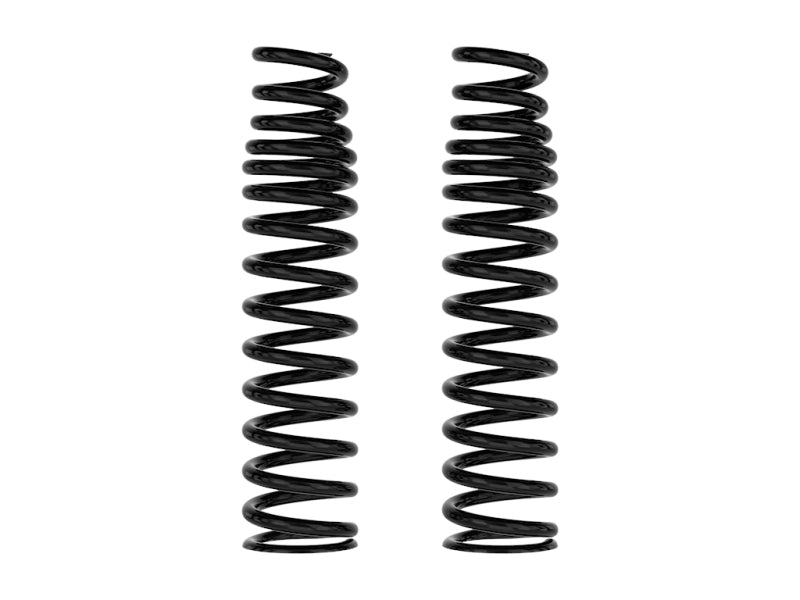

The ICON Vehicle Dynamics Heavy Rate Rear Coil Spring Kit is a dual rate coil spring kit that provides extra weight capacity for those who frequently load out the rear of their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. The Heavy Rate Coil Spring Kit simply includes the replacement Heavy Rate coil springs used to retrofit existing ICON Rear Coilovers to the Heavy Rate specification. This Heavy Rate Coil Spring Kit is a perfect all-around rear coil spring for those who either keep their Broncos heavily loaded full time, or only for occasional expeditions yet want to maintain the best possible performance across various load-out scenarios with taller ride heights under load compared to the standard ICON triple rate Bronco rear coil springs.
Installation Instructions

This Part Fits:

Year	Make	Model	Submodel
2021-2023	Ford	Bronco	Badlands
2021-2023	Ford	Bronco	Base
2021-2023	Ford	Bronco	Big Bend
2021-2023	Ford	Bronco	Black Diamond
2022-2023	Ford	Bronco	Everglades
2021	Ford	Bronco	First Edition
2023	Ford	Bronco	Heritage Edition
2023	Ford	Bronco	Heritage Limited Edition
2021-2023	Ford	Bronco	Outer Banks
2021-2023	Ford	Bronco	Wildtrak
