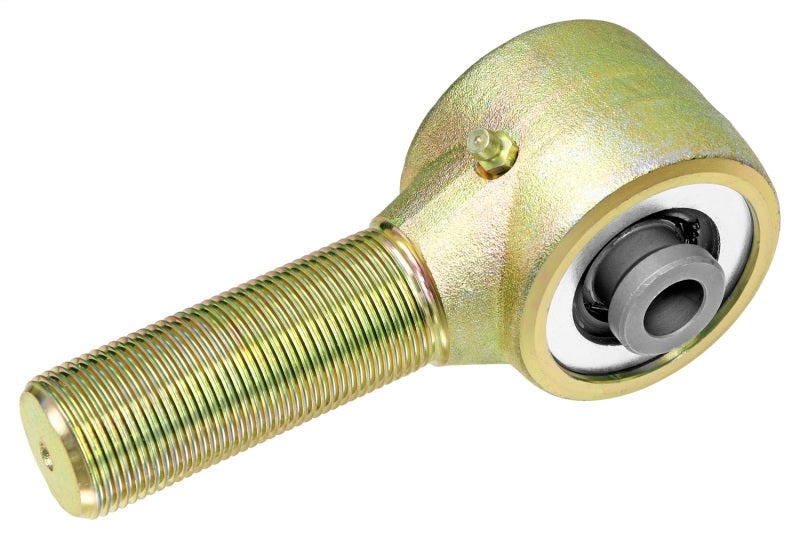

RockJock Johnny Joint Rod End Forged 2.625in Ball RH Thread

Experience Unrivaled Articulation with the RockJock Forged Johnny Joint Rod End

For serious fabricators and suspension system builders, the RockJock Forged Johnny Joint® Rod End delivers unparalleled performance. Unlike common heim joints, this 2 1/2 inch diameter Johnny Joint provides an impressive 30 degrees of unrestricted movement in any direction, significantly enhancing your vehicle's articulation and off-road capability. Its innovative design combines the best attributes of a spherical bearing with the cushioning benefits of a bushing.

Key Features & Benefits:

• Superior Articulation: Offers 30 degrees of movement, far exceeding the 22 degrees typically found in standard heim joints, for maximum suspension flexibility.
• Urethane Cushioning: High-density urethane bushings encase the inner ball, providing crucial cushioning that traditional heim joints lack, reducing harshness and noise.
• Forged Durability: Constructed from forged materials for extreme strength and longevity, capable of withstanding severe off-road abuse.
• Thru-Bolt Lubrication: The heat-treated center ball is cross-drilled, allowing for efficient thru-bolt lubrication to keep the joint operating smoothly.
• Robust Retention: Joint internals are securely held in place by two heavy-duty, heat-treated side washers and a snap ring.
• Precision Specifications: Features a 2.625 inch mounting width ball with a .562 inch thru-bolt hole and a 2 1/4 inch long, 1 1/4 inch-12 right-hand thread shank.
• Corrosion Protection: Finished with a durable gold zinc plating for excellent resistance against corrosion and wear.

This greasable Johnny Joint is equipped with a zerk fitting for easy maintenance, ensuring long-lasting, reliable performance. Build your ultimate suspension system with the trusted quality of RockJock Johnny Joints, available at GGCRACING.
