Timbren 2009 Ford F-150 Platinum 4WD Rear Suspension Enhancement System

Name: Timbren 2009 Ford F-150 Platinum 4WD Rear Suspension Enhancement System
Brand: Timbren
SKU: TIMFR1504D
Price: 316.90 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Timbren

Timbren 2009 Ford F-150 Platinum 4WD Rear Suspension Enhancement System

SKU: TIMFR1504D

No reviews

Timbren Suspension Kits (SES Kits) are designed to enhance the ...Read More

Price:

$316.90

Quantity:

Add To Cart

Car Wheel Size Chart

Wheel Diameter (inches)	Tire Width (mm)	Aspect Ratio	Rim Width (inches)
14	185	65	5.5
15	195	60	6.0
16	205	55	6.5
17	215	50	7.0
18	225	45	7.5
19	235	40	8.0
20	245	35	8.5

Note: Wheel and tire sizes vary by car make and model. Always consult your vehicle’s manufacturer for exact specifications.

How to Read Tire Size

Example: 225/45R17 means:

225 = Tire width in mm
45 = Aspect ratio (height as % of width)
R17 = Rim diameter in inches

Ships FAST in USA

Guaranteed Low Price

GGCRACING Discount

Product Details

Product Description

Part Numbers

Sizing & Fit

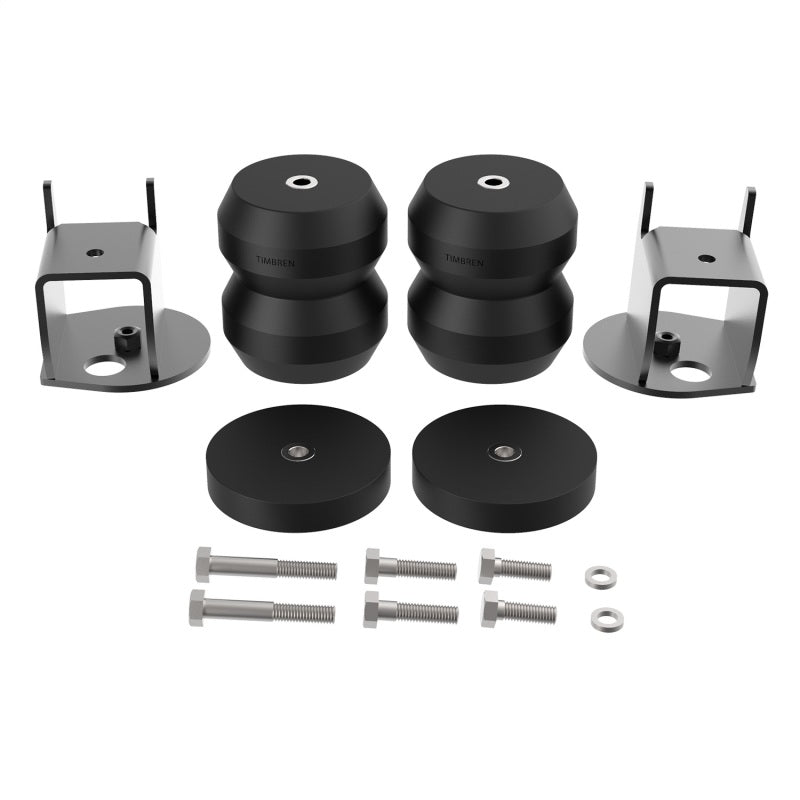

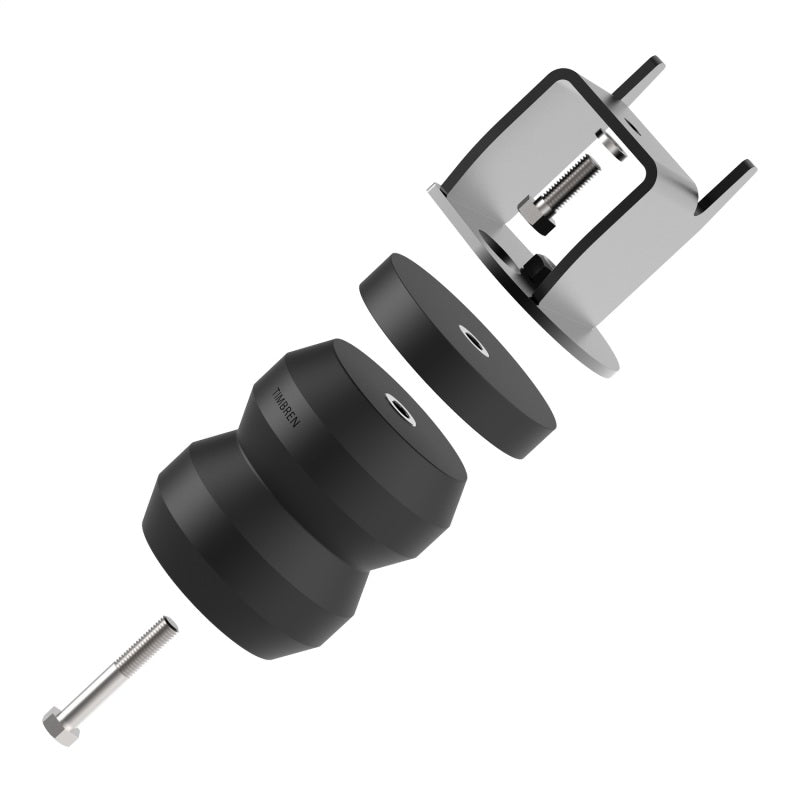

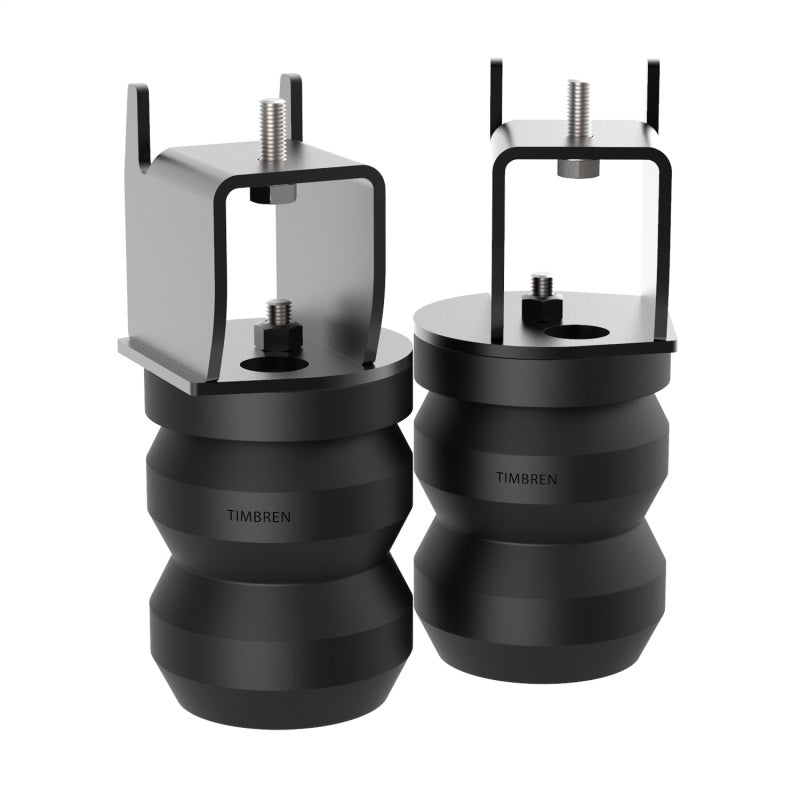

Timbren Suspension Kits (SES Kits) are designed to enhance the suspension of your vehicle. Easiest to use: Rubber cushions absorb road shocks and automatically adjust to uneven loads or road conditions. Easiest to maintain: There are no airlines or fittings to allow leaks. Simply bolt the kit on and you are set for a lifetime of trouble free suspension.Easiest to install: There are no holes to drill, no airlines to route and SES Kits can be installed in a matter of minutes using basic hand tools. The softer ride quality of todays trucks and the mediocre suspensions found on most trailers can cause excessive trailer sway, instability and suspension settling.Timbrens high performance suspension packages will ensure added safety and peace of mind.
Installation Instructions

This Part Fits:

Year	Make	Model	Submodel
2009-2014	Ford	F-150	FX4
2010-2012	Ford	F-150	Harley-Davidson Edition
2009-2014	Ford	F-150	King Ranch
2009-2014	Ford	F-150	Lariat
2011	Ford	F-150	Lariat Limited
2013-2014	Ford	F-150	Limited
2009-2014	Ford	F-150	Platinum
2009-2014	Ford	F-150	STX
2009-2014	Ford	F-150	XL
2009-2014	Ford	F-150	XLT
