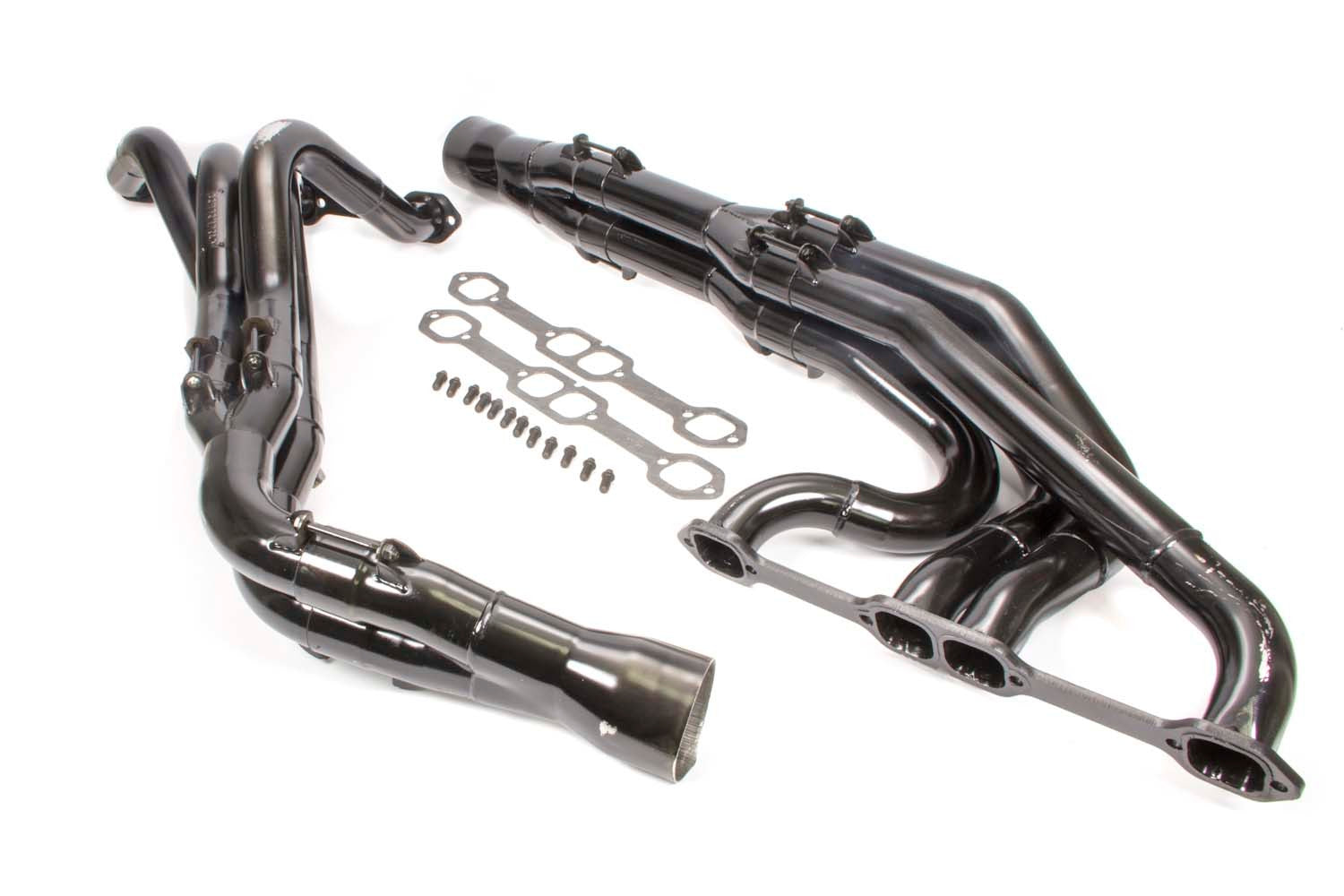

Schoenfeld Headers Tri-Y Dirt Late Model Headers

Experience ultimate performance with these Schoenfeld Tri-Y Headers, specifically engineered for Dirt Late Model applications and Small Block Chevy engines. The advanced Tri-Y design optimizes exhaust scavenging for increased horsepower and torque across the entire RPM range.

Advanced Performance Design:

• Application: Dirt Late Model racing
• Engine Fitment: Small Block Chevy (SBC)
• Primary Tube Diameter: Stepped 1.875 to 2 inches, maximizing powerband
• Collector Diameter: 3.5 inches for superior exhaust flow
• Design: Tri-Y configuration for enhanced scavenging and torque
• Material: Durable steel construction for long-lasting performance
• Finish: Black paint for a sleek, race-ready appearance
• Included: Gaskets and hardware for a complete installation

These Schoenfeld Headers feature a sophisticated Tri-Y design, where pairs of primary tubes merge into a secondary tube before entering the collector. This configuration is proven to improve exhaust pulse separation, leading to more efficient scavenging and a significant boost in both horsepower and torque, especially crucial in the varied demands of Dirt Late Model racing. The stepped primary tubes, ranging from 1.875 to 2 inches, are carefully tuned to provide optimal performance from low-end grunt to high-RPM power. The 3.5-inch collector ensures minimal restriction. Constructed from robust steel and finished in black paint, these headers are built to endure the harsh conditions of racing. The included gaskets and hardware simplify the installation process. Elevate your Dirt Late Model's performance with these top-tier Tri-Y headers from GGCRACING.
